Energy-Saving App

This energy-saving application will dynamically power off a switch when the average bandwidth utilization of its links drops below a low-watermark threshold and will power it on again when its average link utilization exceeds a high-watermark threshold. For a network whose topology is like that of a datacenter network with many redundnt switches to increase the total capacity of the network and reliability, this energy-saving application can dynamically and iteratively power off many under-utilized switches to greatly reduce the energy consumption of the network without degrading the Quality of Service (QoS) of the network.

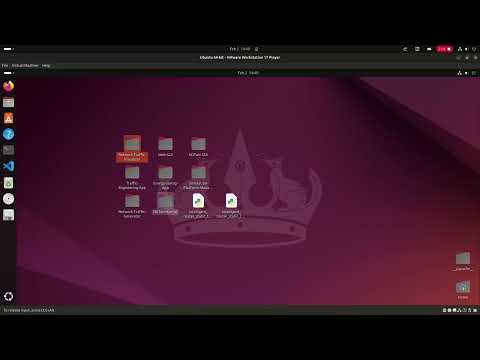

Watch the demo

ComponentDescriptionFormatLink
Pre-configured Demo VMA fully set up virtual environment with all NDTwin components installed. Requires VMware..ovaDownload

This manual provides a step-by-step guide to deploying the NDTwin Energy Saving.

1. Ryu SDN Controller

  • Path: ~/NDTwin/Desktop
  • Environment: ryu-env
  • Note: The controller must be started first to observe and manage the network links.

Navigate to the directory:

cd ~/NDTwin/Desktop

Activate the environment:

conda activate ryu-env

Execute the controller:

ryu-manager intelligent_router_static_topo2.py --observe-link

2. Mininet Network Topology

  • Path: ~/Desktop/Network-Traffic-Generator
  • Environment: ntg_env
  • Note: Password for sudo is ndtwin. This step builds a network topology with 128 nodes.

Navigate to the directory:

cd ~/Desktop/Network-Traffic-Generator

Activate the environment:

conda activate ntg_env

Execute the topology script:

sudo $(which python) example_topology.py

3. NDTwin Kernel

  • Path: ~/NDTwin/NDTwin-Kernel/build
  • Note: Requires manual selection of deployment and AI features during startup.

Navigate to the build directory:

cd ~/NDTwin/NDTwin-Kernel/build

Execute the kernel:

sudo ./bin/ndtwin_kernel --loglevel info

Select startup configurations:

  • Environment choice: Enter 1 (Local Mininet).
  • OpenAI Token: Enter 2 (Disable AI features).

4. Network Traffic Visualizer

  • Path: ~/Desktop/Network-Traffic-Visualizer
  • Note: Provides a GUI to monitor the live network state and traffic flows.

Navigate to the directory:

cd ~/Desktop/Network-Traffic-Visualizer

Run the visualizer script:

./network_traffic_visualizer.sh

5. Simulation Platform Manager

  • Path: ~/Desktop/Simulation-Platform-Manager
  • Note: Manages the integration between the simulated network and the NDTwin applications.

Navigate to the directory:

cd ~/Desktop/Simulation-Platform-Manager

Execute the manager:

sudo ./simulation_platform_manager

6. Energy Saving App

  • Path: ~/Desktop/Energy-Saving-App
  • Note: Monitors network traffic and dynamically powers switches on/off to optimize energy consumption.

Navigate to the directory:

cd ~/Desktop/Energy-Saving-App

Execute the application:

sudo ./energy_saving_app

7. Traffic Generation and Energy Management

  • Note: This step simulates network load to trigger the Energy Saving logic.

In the Network Traffic Generator terminal, start the flows:

# Inside the NTG interface
flow --config

# Select the configuration file
config_template2.json

Verify Results:

  • Idle State: Observe the App logs for PowerOffSwitches triggering when traffic is low.
  • High Load: Once the 35 flows (1Gbps each) are generated, the system should detect high utilization and trigger the PowerOn sequence.
  • Monitoring: Use the Visualizer GUI to confirm the real-time status changes of the switches.
